商品の詳細:
|
| 製品名: | 絶縁スティックピンとワッシャー | 材料: | 亜鉛メッキ鋼、ステンレス鋼、アルミニウム |
|---|---|---|---|
| ピン径: | 標準として2.7mm | ピンの長さ: | 19mm - 400mm、カスタマイズ可能 |
| ベースサイズ: | 50mmx50mmが標準 | 付属品: | さまざまなセルフロックワッシャーまたはドームキャップが利用可能です |
| カスタマイズ: | 利用可能 | サンプル: | 利用可能 |
| ハイライト: | 12 gauge galvanized steel insulation pins,rockwool insulation stick pins with washers,self adhesive insulation pins for rockwool |
||

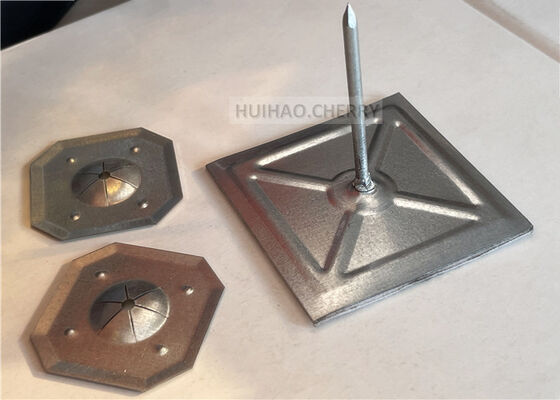

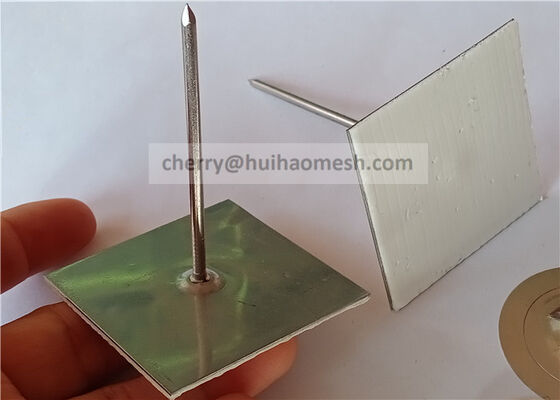

Self stick insulation pins used in conjunction with self locking washrs, provide a quick and effective method for securing insulation to smooth surfaces, such as air ducts, attenuators, chambers and enclosures, without the need for welding or drilling.
1. Wide application: Ideal for securing mineral wool, rock wool, and other insulation materials onto walls, ceilings, floors, metal buildings etc.
2. Ready-to-Use Adhesive: A steel base which is backed with a ready to use "peel & stick" foam adhesive for quick and convenient application onto metal surfaces.
3. Strong Adhesion: Once the base is stuck onto the metal surface, its very hard to drag it down.
4. High Hardness & Corrosion-resistant Material: Made from stainless steel, galvanized steel, or aluminum, resistant to corrosion.
5. Various Of Self Locking Washers Or Dome Caps Available: Ensures the insulation stays securely in place.
If you are in need of insulation stick pins and washers, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com
| Pin diameter | Base size | Pin length | Clips Size |
| 12 Ga (2.7mm) 11Ga (3.0mm) 10 Ga (3.4mm) | 50mmx50mm | 1'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm) 11Ga (3.0mm) 10 Ga (3.4mm) | 50mmx50mm | 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm) 11Ga (3.0mm) 10 Ga (3.4mm) | 50mmx50mm | 2 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm) 11Ga (3.0mm) 10 Ga (3.4mm) | 50mmx50mm | 3 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm) 11Ga (3.0mm) 10 Ga (3.4mm) | 50mmx50mm | 4'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
|
12 Ga (2.7mm) 11Ga (3.0mm) 10 Ga (3.4mm) |
50mmx50mm | 5 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm) 11Ga (3.0mm) 10 Ga (3.4mm) | 50mmx50mm | 8'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
|
For Insulation Stick Pins And Washers, the base size, the pin dia, the pin length, the self locking washer size, and the package all is customizable.
|
|||
* Wipe Surface Clean: Insulation stick pins should be applied to a clean, dry non-porous surface
* Simply peel off the backing tape.
* Stick the pin to the surface where the insulation will be placed.
* Put the insulation in place, and push the insulation onto the pin.
* Push the self locking washer over the pin.
* Important note: add the cap or bend the pin over on itself to avoid it impaling someone.
* Your insulation is now hanging without the fear of falling.
1. 500 pcs/paper box
2. 48 paper boxes/pallet
3. as your requirement
1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.
2. Do you support product customization?
Yes, we can customize material, surface finish, nail diameter and length, self locking washer type and size, according to your requirements.
3. Can I get samples?
Yes, we can send you samples, the samples are free, just the shipping cost for the samples is on your side.
4. Can you accept small orders?
Yes, we accept small orders for common sizes.
5. How do you ensure product quality?
