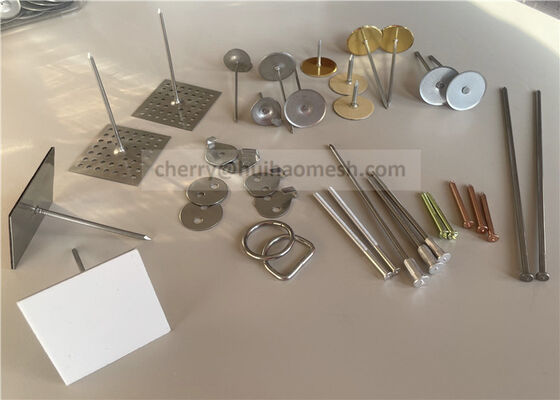

3x125mm Perforated Stick Pins Galvanized Steel Rock Wool Fixing Insulation Nail Fastener

Specification Of Perforated Stick Pins Galvanized Steel Rock Wool Fixing Insulation Nail Fastener:

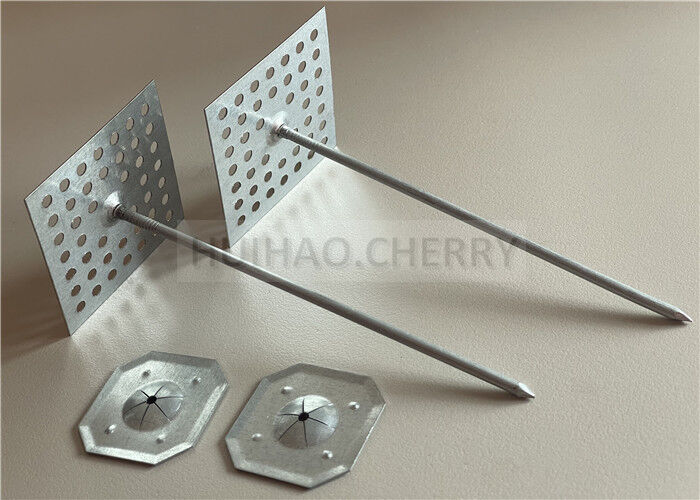

Hi, It's Cherry, this perforated stick pins are widely used to fasten insulation boards, wraps, and batts to walls and ceilings. Once the perforated stick pins are fixed with either pin adhesive or fastener, the insulation can be pierced onto the pins. Once pierced, the insulation will be held in place with the use of a self locking washer. Self locking washers come in many shapes and sizes for various applications.

Huihao Hardware Mesh Product Limited is a professional manufacture of perforated stick pins and self locking washers, we choose high standard raw materials, have fully automatic production line and strict quality control system, the quality is good, and the delivery is fast. If you are in need of perforated stick pins and self locking washers, please feel free to ask me a price or sample.

Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm etc.

Surface treatment: zinc coated or copper coated for mild steel material

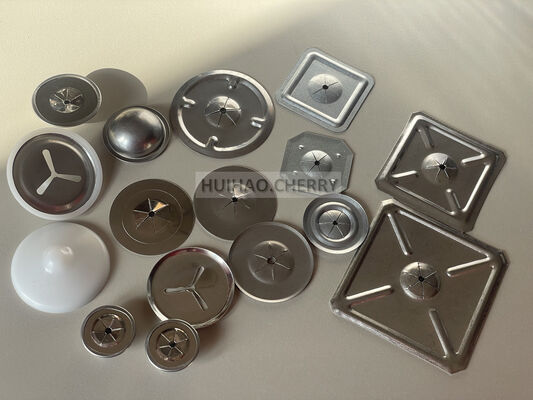

Self locking washer type: round, square, dome capped

Self locking washer size: 22mm, 25mm, 28mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc.

Applications Of Perforated Stick Pins Galvanized Steel Rock Wool Fixing Insulation Nail Fastener:

	1. Wipe surface clean Perforated stick pins must be applied to a clean, dry, non-painted surface.
	2. Apply adhesive to the bottom of the perforated stick pins Spread adhesive onto the perforated base with a putty knife.
	3. Immediately stick the insulation pin in place. Press the pins into position with a twisting motion to assure an even spread of adhesive. The adhesive should protrude through the performation & beyond the edges of base.
	4. Install Insulation Note: allow adhesive to dry thoroughly before hanging insulation, usually 24-72 hours.
	5. Secure with clips Secure insulation in place with a self-locking insulation clip and then bend over or clip off the pins.

Similar Products Of Perforated Stick Pins Galvanized Steel Rock Wool Fixing Insulation Nail Fastener:

Huihao Hardware Mesh Product Limited is a professional manufacture of insulation pins and self locking washers, our main products are: perforated base or adhesive base insulation pins for building insulation, CD weld pins and bimetallic welding pins for marine insulation, cup head weld pins for metal ducting insulation, lacing anchors and quilting pins for the fabrication of removable insulation blanket, and various of self locking washers and dome capped washers.

Package Details Of Perforated Stick Pins Galvanized Steel Rock Wool Fixing Insulation Nail Fastener:

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM	SUPPORT CUSTOM

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners 2. We do copper plating, zinc coated and phosphating pretreatment for the raw material. 3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement. 4. We use the automatic riveting machine to install . 5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea. 6. Short delivery time because of our reasonable production flow management.
