商品の詳細:
|
| 名前: | 自己接着絶縁材ピン | 材料: | 鋼筋,不鋼鋼 |
|---|---|---|---|
| ベースサイズ: | 50mmX50mm | ピンダイア: | 11ガ、12ガ |
| ピンの長さ: | 25mm~320mm | 付属品: | 自閉式洗濯機,ドームキャップ洗濯機 |
| OEM: | サポート | 工場: | 10年以上 |
| ハイライト: | 50x50mm self adhesive insulation pins,HVAC system insulation pins,base rock wool adhesive pins |
||

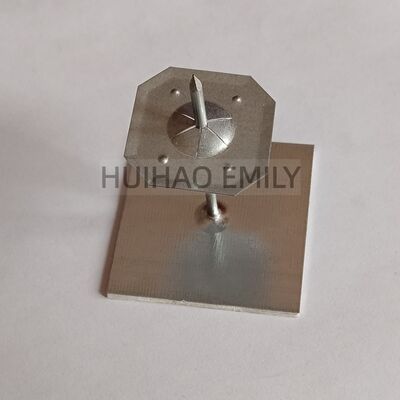

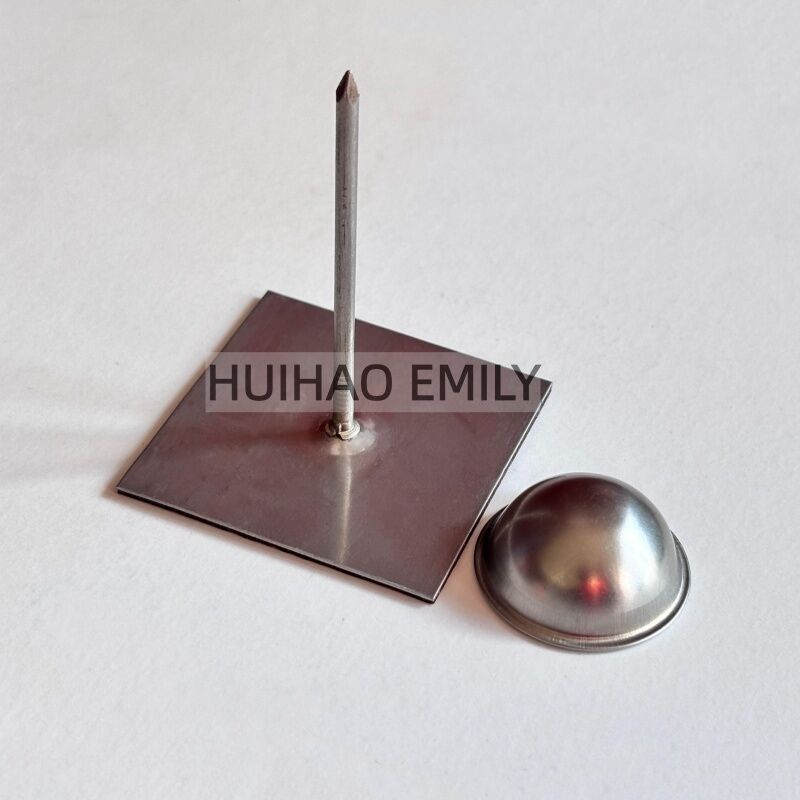

Product name: self adhesive insulation pins ,rock wool insulation pins
Fixing parts : self locking washer, dome caps washers
Material: mild steel, stainless steel, aluminum
Pins length : 38mm-250mm (1-1/2"-10")
Surface treatment: zinc coated, copper plating
Self adhesive insulation pins Features:
Base material must choose high hardness steel material ,avoid to deform ,SS and CS are common
materials ,The base size if less than 50mmx50mm ,we must increase the pin quantity per square
meter when fixing insulation layers
Pin material must enough soft ,so the material must be anneading treatment .SS ,MS and alu are
widly used MS material,must be made zinc coated ,rust prevention and corrosion ,increase service life
|
Specification of self adhesive rock wool insulation pins |
||
|
pin diameter |
tape base |
pin length |
|
12 ga (.106)/ 3mm |
50mm Square |
1 |
|
12 ga (.106)/ 3mm |
50mmSquare |
1-5/8 |
|
12 ga (.106)/ 3mm |
50mm Square |
2-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
3-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
4-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
5-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
6-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
8" |
|
12 ga (.106)/ 3mm |
50mm Square |
8-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
9-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
10-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
12" |
Accessories of 50x50mm Base Rock Wool Self Adhesive Insulation Pins:
|
|
Fixing parts for rock wool self adhesive insulation pins : Round type self locking washers Square type self locking washers Metal dome cap washers Speed clips with plastic cover |
Glass wool *rock wool polysyren*PU panels*Foam glass*Lighting building boards made of wood
wool*Coir matting *Cork boards
How to choose suitable pin length for fixing insulation material ?
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards
|
|
Package of 50x50mm Base Rock Wool Self Adhesive Insulation Pins: >> Package 2. to be your requirements. |
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,
Our products is as following :
1.CD weld pins
2.Lacing Anchors
3.Bimetallic pin
4.Cup head weld pins
5.Quilting pins
6.perforated base pins
7.self adhesive pins
8.metal washers
9.all kinds of self locking washers, Dome caps.
