商品の詳細:
|
| 名前: | ロックウール固定絶縁ピン | 材料: | 穏やかな鋼鉄、ステンレス鋼 |
|---|---|---|---|
| ピンダイア: | 12ga、11ga | ピンの長さ: | 25mm~320mm |
| 取り付け部分: | セルフロックワッシャー | カスタマイズされたサイズ: | サポート |
| サービス: | ドアツードア | 工場: | 10年以上 |
| ハイライト: | galvanized steel insulation pins,self locking washer insulation pins,rock wool fixing pins |
||

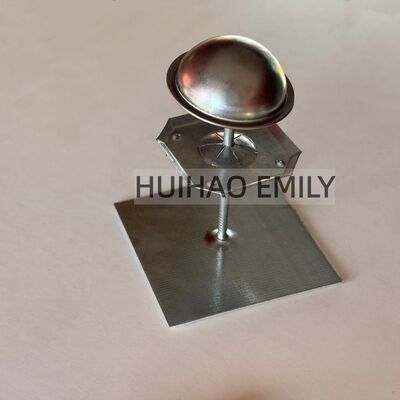

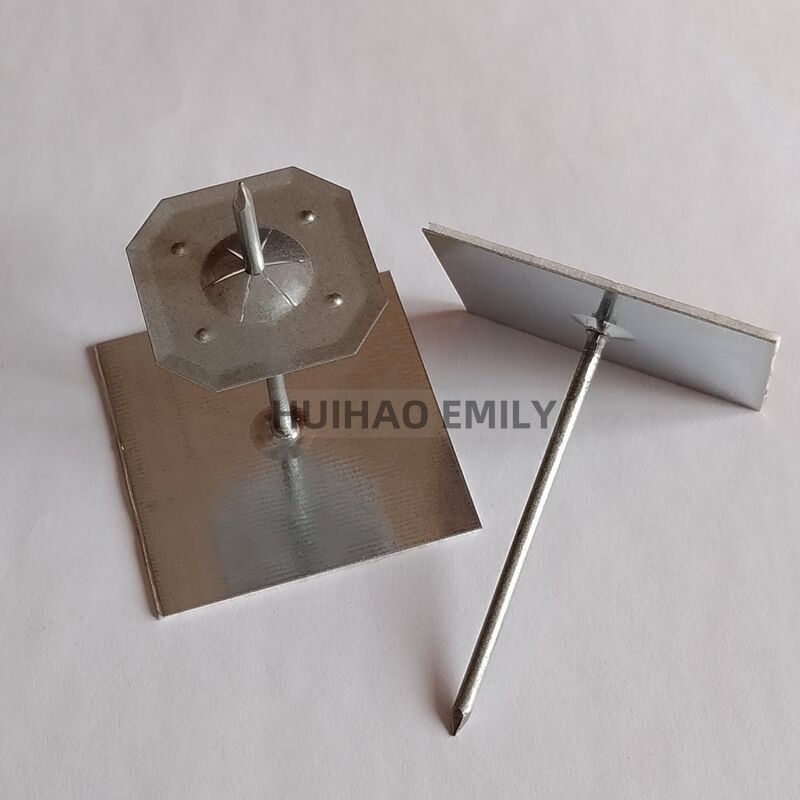

Insulation pin is an insulation hanger with a self-stick base. Just peel the release paper from the hanger base and firmly press the base to the clean duct surface. Impale the insulation over the hanger nail and slip on the locking washer. Self-stick hangers adhere to clean metal surfaces and withstand high temperatures. When using an adhesive fastener, the fastener is bonded to the duct-work with an appropriate adhesive and allowed to set up. After sufficient drying time the liner is impaled on the pin and a washer added to retain the liner.
Rock wool insulation pins Features:
|
Specification of self adhesive rock wool insulation pins |
||
|
pin diameter |
tape base |
pin length |
|
12 ga (.106)/ 3mm |
50mm Square |
1 |
|
12 ga (.106)/ 3mm |
50mmSquare |
1-5/8 |
|
12 ga (.106)/ 3mm |
50mm Square |
2-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
3-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
4-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
5-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
6-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
8" |
|
12 ga (.106)/ 3mm |
50mm Square |
8-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
9-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
10-1/2" |
|
12 ga (.106)/ 3mm |
50mm Square |
12" |
|
Self Stick Insulation Fasteners work best on new/clean sheet metal. Perforated Pins should be used on older/painted ducts, or metal building roofs. 1. It has anti-temperature sudden change, cold resistance and heat resistance; |
|
|
|
Package of Galvanized Steel Rock Wool Fixing Insulation Pins : >> Package 2. to be your requirements. >>> Delivery |
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,
Our products is as following :
1.CD weld pins
2.Lacing Anchors
3.Bimetallic pin
4.Cup head weld pins
5.Quilting pins
6.perforated base pins
7.self adhesive pins
8.metal washers
9.all kinds of self locking washers, Dome caps.
