商品の詳細:
|
| 製品名: | 絶縁ハンガーネイル | 材料: | 軽鋼 ステンレス鋼 アルミニウム |
|---|---|---|---|
| 表面処理: | 銅被覆、亜鉛メッキ、研磨 | ベースサイズ: | 50mm共通、その他はお問い合わせください |
| ピンダイア: | 11ガ、12ガ | ピンの長さ: | 25mm~320mm |
| 付属品: | 自閉式洗濯機,ドームキャップ洗濯機 | サンプル: | サポート |
| ハイライト: | self adhesive insulation pins with nails,HVAC air duct liner hangers,63.5mm self stick insulation nails |
||

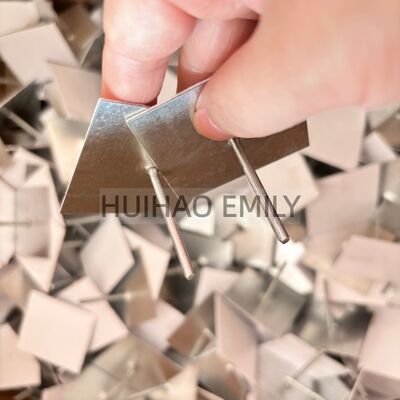

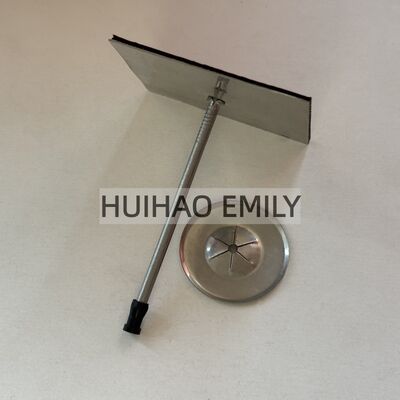

Self-Sticking Insulation Hangers are used to fasten insulation materials to sheet metal quickly
and easily. Each pin's metal base has a foam adhesive covered with a release paper. Once the
insulation is pierced onto the pin, a locking washer or a domed cap can be installed to hold the
insulation in place. Ideal for sticking onto new or clean sheet metal of insulation construction.
Main benefits of Self Stick Insulation Hanger pins:
|
Specification of Self Stick Insulation Hangers Nails |
|
|
Common specifications |
Length: 1-1/4” - 8” |
|
Diameter:12GA ,14GA |
|
|
Base : 2”*2” |
|
|
Material |
Pin: Stainless steel, Aluminum, Stainless steel |
|
Base: High strength galvanzied steel, stainless steel ,Aluminum |
|
|
Surface treatment |
Polishing, galvanzied plating |
|
Product features |
Firm conjunction between pins and bases |
|
Pins are soft, easy bending over |
|
|
Excellent stickness for double-sided adhesive property |
|
|
Length tolerance ±0.1mm |
|
|
Production workmanship |
Automated production |
|
Packing |
Packing can be customized as per requirements, current packing information available upon request. |
|
Application |
Fixing various insulation blankets and boards |
|
Accessories |
Round self locking washer ,square self locking washer ,dome cap washer |
|
Fixing parts of self stick insulation hanger nails 1.Round type self locking washers 2.Square rype self locking washers 3.Metal dome cap washers 4.Speed clipses with plastic cover |
|
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength
of adherence is achieved after 24 hours.
|
|
Package of Self Stick Insulation Hanger Nails: >> Package 2. to be your requirements. |
1. why must choose anneaded metal wire?
soft wire is easily for bending when fixing rock wool materials with self locking washer.
2. why we choose 2.7mm or 3mm wire to make the nails?
2.7mm and 3mm thickness wire is standard size for insulation pins. at same time, the pin length
is decide the pin diameter.
3. why we choose hardness metal sheet for making the square base?
hardness metal sheet is more firmly , no-shedding, nondeformable.
