商品の詳細:
|
| 製品: | セルフアレッシブスティックピン | 材料: | 軽鋼 ステンレス鋼 アルミニウム |
|---|---|---|---|
| 表面処理: | 磨かれた、亜鉛メッキ、銅がコーティングされた | ベースサイズ: | 50mm×50mm共通 |
| ベースタイプ: | 自己接着ステッカー | ピンダイア: | 12ga、11ga共通 |
| ピンの長さ: | 25mm~320mm | 付属品: | 自閉式洗濯機,ドームキャップ洗濯機 |
| ハイライト: | 50mm self adhesive insulation pins,ventilation duct adhesive stick pins,self adhesive duct insulation pins |
||

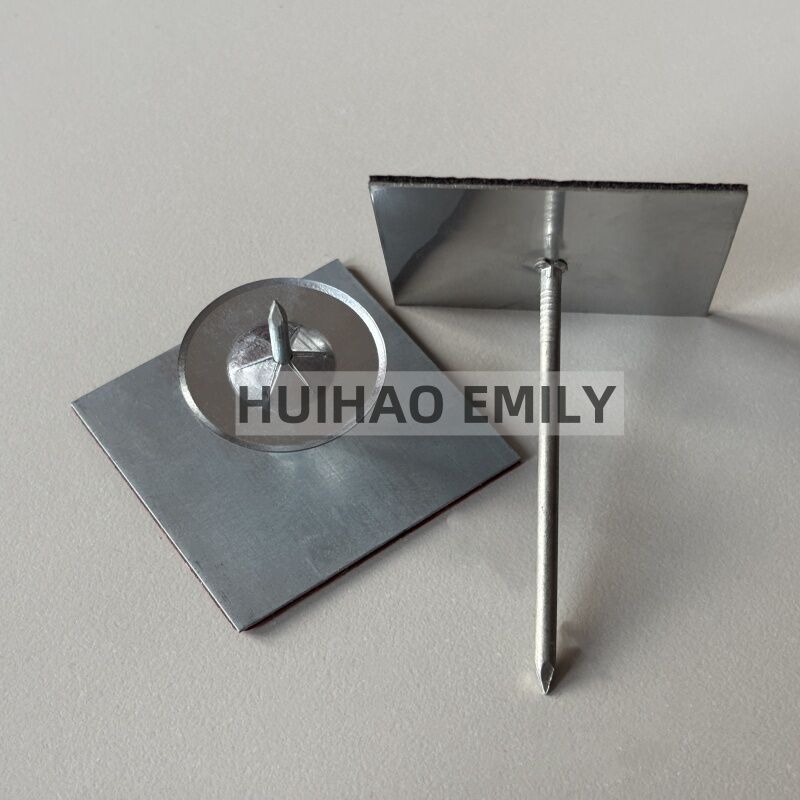

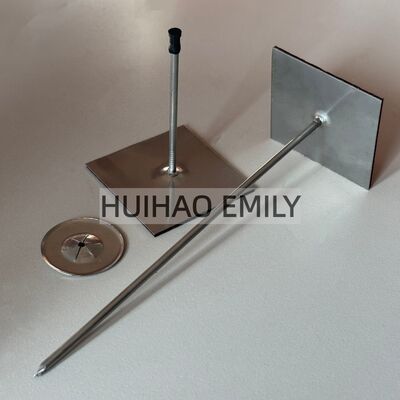

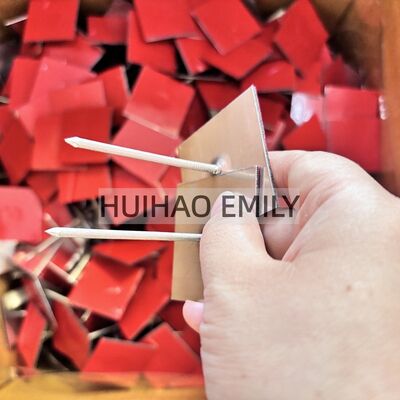

Self adhesive stick pins are used for fixing insulation materials on vertical application surfaces.
self-adhesives tandard insulation pins can be used only on straight, smooth, clean and dry
surfaces. Adhesive Surface must not be fingered. Insulation pin have a sticker backing to make
placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't
any fumbling with the release paper. self adhesive insulation pin are widely used for metal buildings,
oncrete foundations - even to the underside of wooden roofs.
For the pin ,the material usually choose stainless steel wire ,aluminum wire ,galvainzied wire ,
the wire must be annealed ,then it is soft to bend ,easy to use .For the base ,the material must be
hard and not easily deformed
The insulation pin usally install with a selt-locking washer and dome cap washer
|
Specification of self adhesive stick pins |
|
| Product size | Pin length: 1-1/4” - 8” |
| Pin diameter:12GA ,14GA | |
| Base size : 2”*2” | |
| Material | Pin: Stainless steel, Aluminum, Stainless steel |
| Base: usually galvanized steel, stainless steel ,aluminum acceptable | |
| Surface treatment | Galvanized , Polished |
| Features | Firm conjunction between pins and bases |
| Pins are soft, easy to bend | |
| Excellent stickness for double-sided adhesive property | |
| Length tolerance ±0.1mm | |
| Packing |
Packing can be customized as per requirements, current packing information available upon request. |
| Application | Fixing various insulation blankets and boards |
| Accessories | Square self locking washer .round self locking waser ,dome cap washer |
speration Temperatures: 15 to 25 ℃
Working Surface should be clean and dry, free of dust, grease, oil and any other loose matter.
Insulation can be impaled immediately and firmly locked with fastening washer.
The Maximum strength of adhesive is achieved after 24 hours
|
|
Package of Self Adhesive Stick Pins : >> Package 2. to be your requirements. |
1. choose annealing wire for the pin
soft wire is easy to bend when fixing rock wool material with self locking washer
2.common size is 2.7mm ,3.0mm wire to make the pin
2.7mm and 3.0mm wre diamerer is standard size for insulation pin ,at the same time ,the diameter is
based on the pin length
3. the pin length based on insulation material thickness
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards
