商品の詳細:
|
| 製品名: | CDスタッド溶接ピン | 応用: | 金属表面に断熱材を固定します |
|---|---|---|---|
| 材料: | 銅コーティングされた鋼、亜鉛メッキ鋼、ステンレス鋼、アルミニウム | 直径: | 1-5mm |
| パッケージ: | カートンボックス | 長さ: | 10-475mm |
| カスタマイズ: | サポート | 小さな注文: | サポート |
| ドアツードアサービス: | サポート | サンプル: | サポート |
| ハイライト: | 3mm Stud Welding Pin,Copper Coated Stud Welding Pin,Insulation Fastening Stud Welding Pin |
||
CD Stud Welding Pin made from stainless steel or copper coated steel or aluminum, are widely used for insulation fastening work on metal surfaces. A Capacitor Discharge Stud Welder is needed for this insulation fastening work. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
If you are in need of CD Stud Welding Pin, please feel free to ask me a price or a sample, our weld pins are with well welding performance and good price, and my email is cherry@huihaomesh.com
Thank you for your valuable time, and hope you have a nice day.
|
Item |
CD Stud Welding Pin For Insulation Fastening Work |
|
Material |
Stainless Steel, Copper Coated Steel, Galvanized Seel, Aluminum |
|
Length |
As your request (length could be 10-475mm) |
|
Diameter |
As your request (diameter could be 1-5mm) |
|
Features |
Standard weld points, easy welding |
|
Supply capability |
10000 Pcs/hour |
|
Remark |
Technical parameters are available upon request |
|
|
|

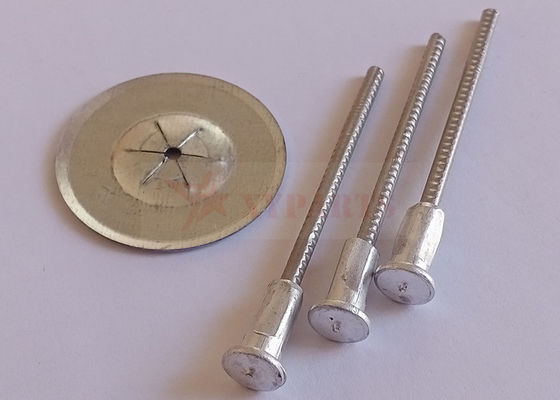

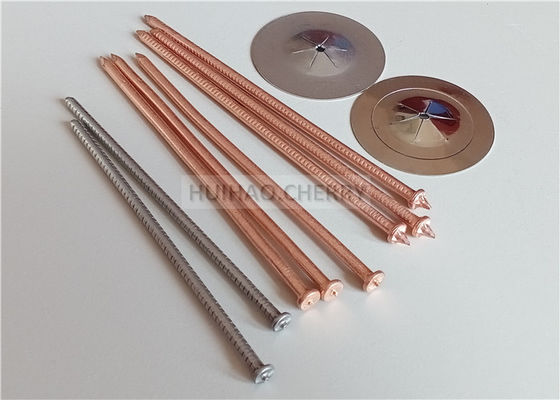

We offer all different kind of self-locking washers/clips to fasten the insulation material on metals surface with CD Stud Welding Pins.
| Item | Material | Diameter | |
| Square Self-Locking Washers | Stainless Steel | 32mm, 38mm, 50mm, 60mm, 63.5mm | |
| Galvanized Steel | 32mm, 38mm, 50mm, 60mm, 63.5mm | ||
| Aluminum | 32mm, 38mm, 50mm, 60mm, 63.5mm | ||
| Round Self-Locking Washers | Stainless Steel | 25mm, 30mm, 38mm, 50mm | |
| Galvanized Steel | 25mm, 30mm, 38mm, 50mm | ||
| Aluminum | 25mm, 30mm, 38mm, 50mm | ||
| Self-Locking Caps | Stainless Steel | 22mm, 28mm, 30mm, 38mm, 40mm | |
| Galvanized Steel | 22mm, 28mm, 30mm, 38mm, 40mm | ||
| Aluminum | 22mm, 28mm, 30mm, 38mm, 40mm | ||
 |
|||
Step 1. Welding the CD Stud Welding Pin in to place
Step 2. Hang the insulation on the weld pins
Step 3. Press washers on the weld pins to secure the insulation
Step 4. Either clip off the weld pins at washer or bend the weld pins over washer
|

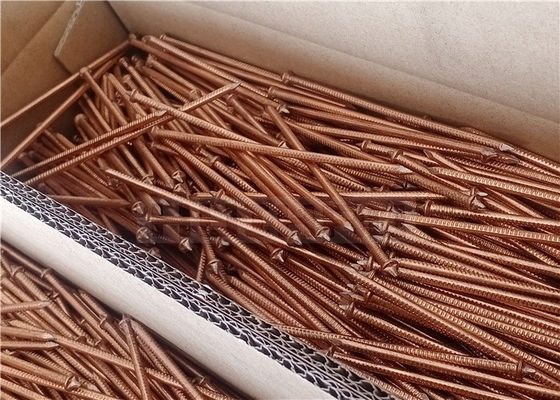

1. 500pcs, 800pcs, 1000 pcs per box (according the pin length ), 2. 6 boxes in one carton, 3. then in one pallet 4. the package can be according your request |
|
